Design and Operating Principle

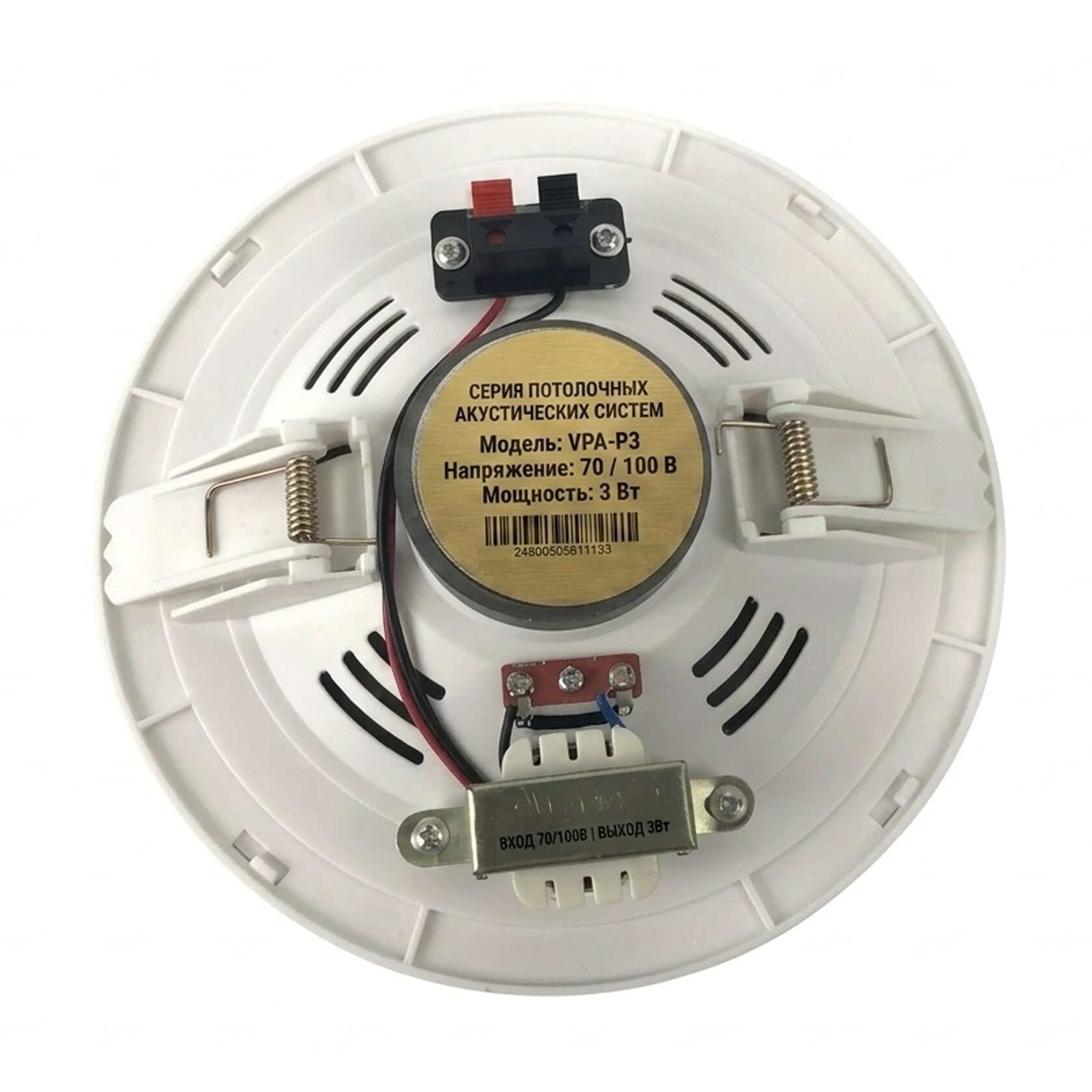

The unit is a ceiling loudspeaker for 70/100V lines. The transducer is a 5″ full-range driver. The line signal is fed to the built-in matching transformer. Frequency range is 100 Hz – 16 kHz, sensitivity 88 dB (1 W / 1 m), continuous sound pressure level up to 93 dB and a maximum of 96 dB (at 3 W).
Installation is flush-mount into a suspended ceiling through a Ø 160 mm cutout. The enclosure is white. An IP44 ingress protection rating and an operating temperature range from −10 °C to +55 °C permit use in damp environments.
Warranty and Certification
- EAC certificate of conformity
- 24-month manufacturer’s warranty
- Service life of at least 10 years.
