Design and operating principle

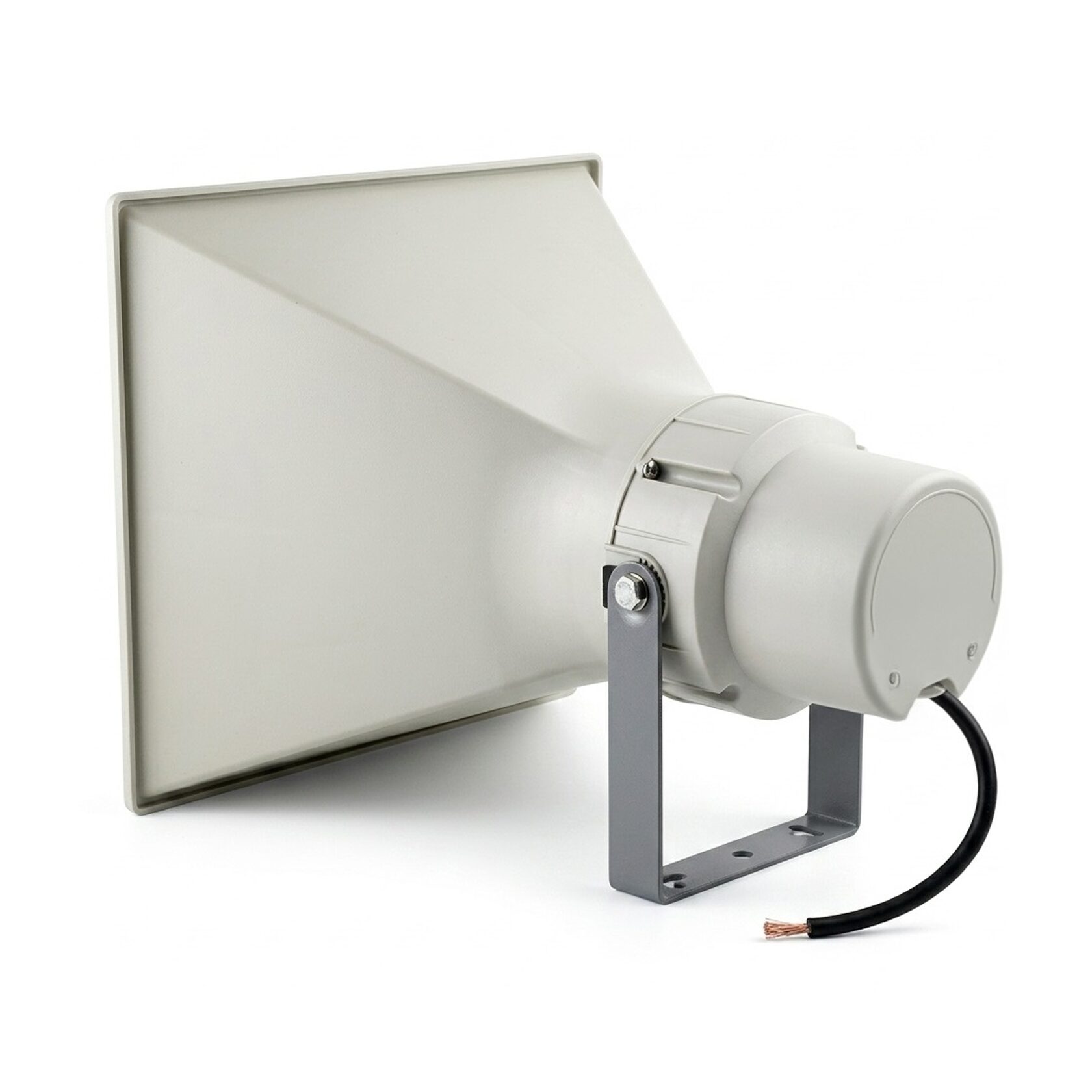

The transducer is a 5″ compression HF driver coupled to a horn. The horn shapes a directional output and delivers high sensitivity of 112 dB; SPL is 132 dB continuous / 135 dB peak. It connects to a 70–110V line. Frequency range is 250 Hz – 13 kHz.
The enclosure is engineering-grade ABS plastic, mounted on a swivel bracket (included). An IP66 ingress protection rating and an operating temperature range of −40 °C to +70 °C are engineered for year-round outdoor operation.
Warranty and certification
- EAC certificate of conformity
- 24-month manufacturer's warranty
- Service life of at least 10 years.
